Description
2MP HD dome camera with built-in microphone for clear audio and video monitoring. Compact, durable design suitable for indoor and outdoor surveillance, delivering reliable Dahua performance.
Dahua DH-HAC-HDW1200TRQP-A 2MP Audio Dome Camera
- 2MP HDCVI Quick-to-install IR Eyeball Camera
- The parameters and datasheets below can only be applied to 1200-S5 series
- Max 30fps@1080P
- Quick-to-install eyeball saves installation time
- Built-in mic (-A)
- CVI/CVBS/AHD/TVI switchable
- 3.6mm fixed lens (2.8mm optional)
- Max. IR length 25m, Smart IR
- IP50, DC12V
Related products
-
SHORT DESCRIPTION:

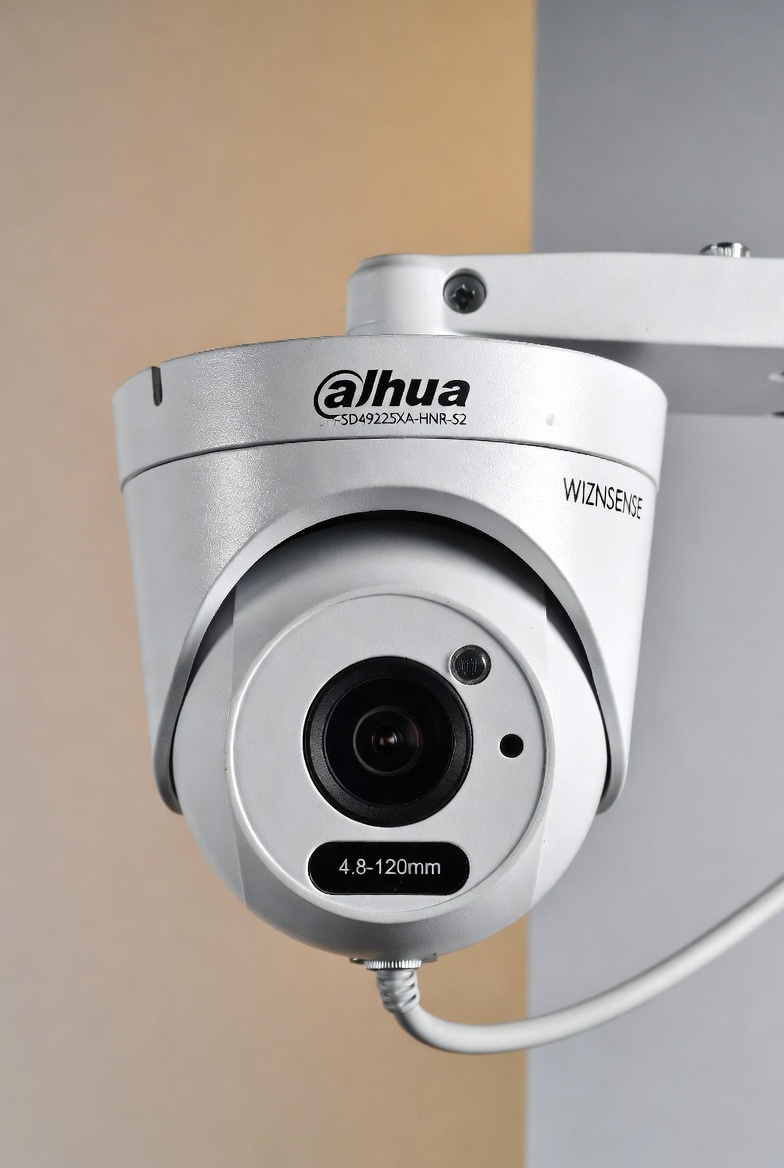

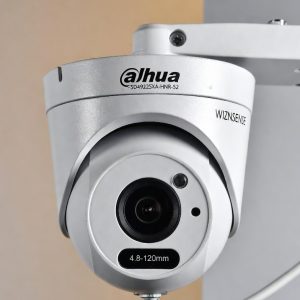

SD49225XA-HNR-S2
2MP 25x Starlight IR WizSense Network PTZ Camera
> 1/2.8″ 2Megapixel CMOS
> Powerful 25x optical zoom
> Starlight technology
> Perimeter protection
> PoE+
> IP66
> IR distance up to 100m
> SMD PLUS
DETAIL DESCRIPTION:
Camera Features
1. Image Sensor: 1/2.8″ CMOS
2. Pixel: 2 MP
3. Max Resolution: 1920×1080
4. Electronic Shutter Speed: 1/1s-1/30000s
5. Scanning System: Progressive
6. Min Illumination: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)
7. Illumination Distance: 100m (328.08ft)
8. Zoom: 25x optical zoom
9. Focus Control: Auto, Semi-Auto, Manual
10. Close Focus Distance: 0.1m-1.5m (0.33ft-4.92ft)PTZ Features
1. Pan/Tilt Range: Pan: 0°-360°, Tilt: -15°-90°
2. Manual Control Speed: Pan: 0.1°-200°/s, Tilt: 0.1°-120°/s
3. Preset Speed: Pan: 240°/s, Tilt: 200°/s
4. Preset: 300
5. Tour: 8 (up to 32 presets per tour)
6. Pattern: 5
7. Scan: 5Video Features
1. Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
2. Streaming Capability: 3 streams
3. Resolution: 1080p, 1.3M, 720p, D1, CIF
4. Frame Rate: Main stream: 1-50/60fps, Sub stream: 1-25/30fps
5. Bit Rate Control: CBR, VBRAudio Features
1. Audio Compression: G.711a, G.711Mu, G.726, AAC, MPEG2-Layer2, G722.1
2. Audio Input: 1
3. Audio Output: 1Network Features
1. Ethernet: RJ-45 (10/100 Base-T)
2. Protocol: HTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, Qos, FTP, UPnP, ICMP, SNMP, SNMP v1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, RTMP, TCPManagement Features
1. User/Host: 20 (total bandwidth: 64MB)
2. Storage: Imou Cloud, FTP, Micro SD card (max. 512GB), NAS
3. Browser: IE7 and later versions, Chrome, Firefox, Safari
4. Management Software: Smart PSS, DSS, IVSS, Configtool, NVR, Smart Player, Imou Mobile PhoneCertifications
1. CE: EN55032/EN55024/EN50130-4
2. FCC: Part15 subpartB, ANSI C63.4-2014
3. UL: UL60950-1+CAN/CSA C22.2, No. 60950-1Environmental Features
1. Operating Temperature: -40°C to +70°C (-40°F to +158°F)
2. Operating Humidity: ≤ 95%
3. Protection: IP66, TVS 6000V lightning proof, surge protection, voltage transient protectionPhysical Features
1. Casing: Aluminum alloy ADC12
2. Dimensions: 269.9mm x Φ160mm (11.61″ x Φ6.30″)
3. Net Weight: 3kg (6.61lb)
4. Gross Weight: 4.2kg (9.26lb)
-
4MP high-definition PTZ camera with 32x optical zoom and infrared night vision. Durable, weather-resistant design for precise, long-range outdoor surveillance and reliable Dahua performance.
-

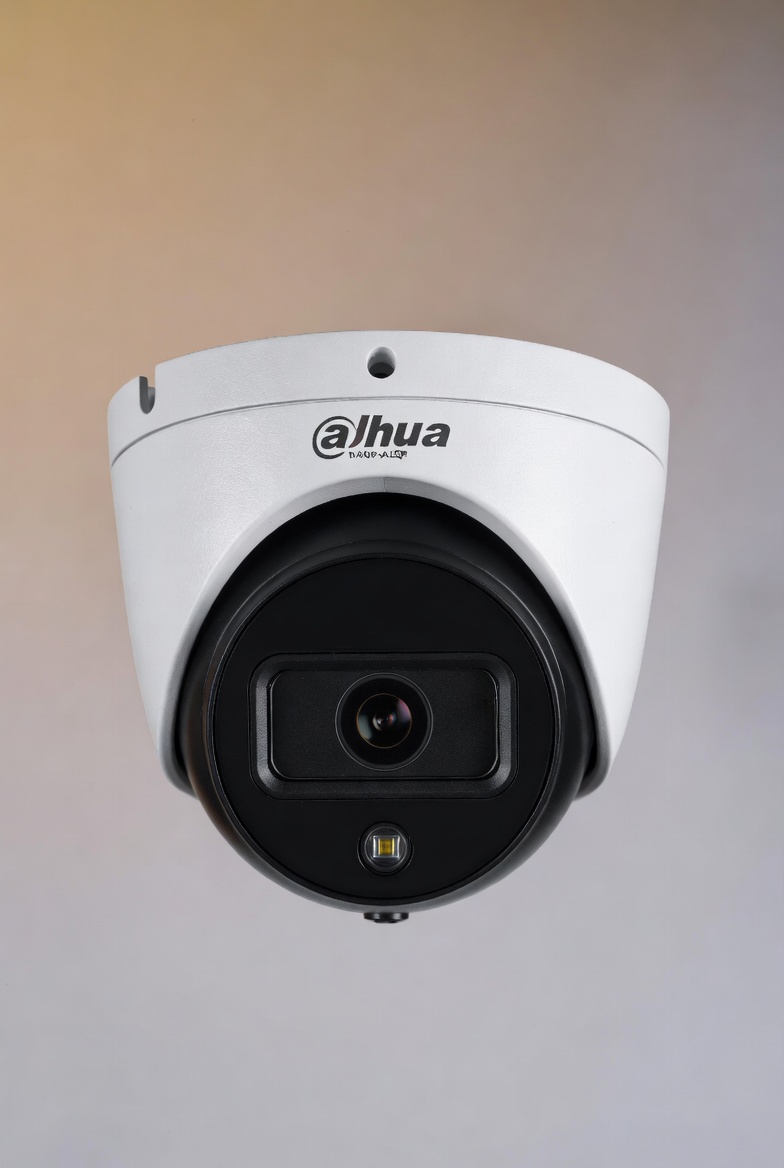

Dahua DH‑HAC‑HDW1209CLQP‑A‑LED 2MP Dome Camera — The Dahua DH‑HAC‑HDW1209CLQP‑A‑LED is a versatile 2 MP full‑color HDCVI dome camera offering 1080p Full HD resolution at up to 30 fps with consistent color imaging day and night. It features built‑in LED illumination for clear low‑light performance up to ~20 m, a fixed 2.8 mm wide‑angle lens with broad field of view, and 4‑in‑1 switchable output (CVI/TVI/AHD/CVBS) for flexible DVR compatibility. With DWDR, BLC/HLC and 2D‑DNR enhancements and an IP67 weather‑proof housing, it’s ideal for both indoor and outdoor surveillance in homes, shops, and offices.
-
Image Sensor 1/2.7″ CMOS Effective Pixels 1920(H)×1080(V), 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 40m (131feet) IR On/Off Control Auto / Manual IR LEDs 2 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm Max Aperture F1.85 Angle of View H: 87.5° (103°, 54.7°) Focus Control N/A Close Focus Distance 500mm (900mm, 2000mm) 19.69” (35.43″, 78.74”)
