Description
2MP HD bullet camera with clear video and wide coverage for outdoor surveillance. Weather-resistant and durable design ensures reliable Dahua performance in all conditions.

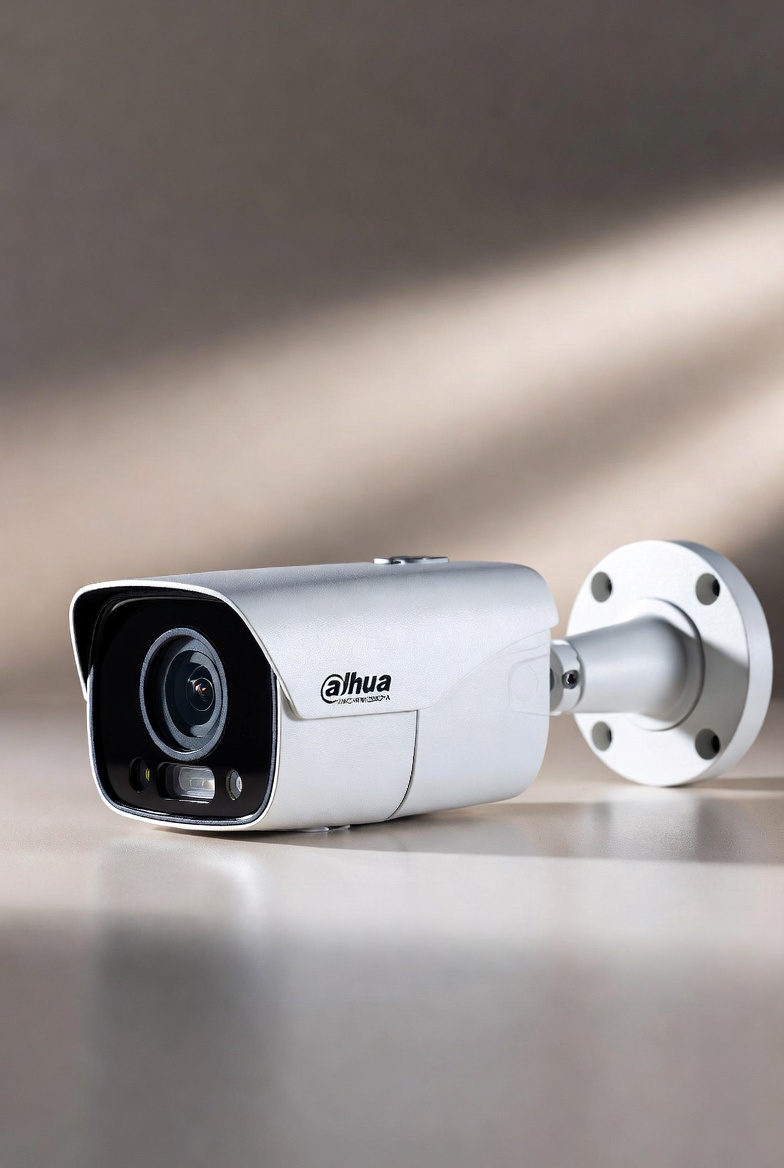

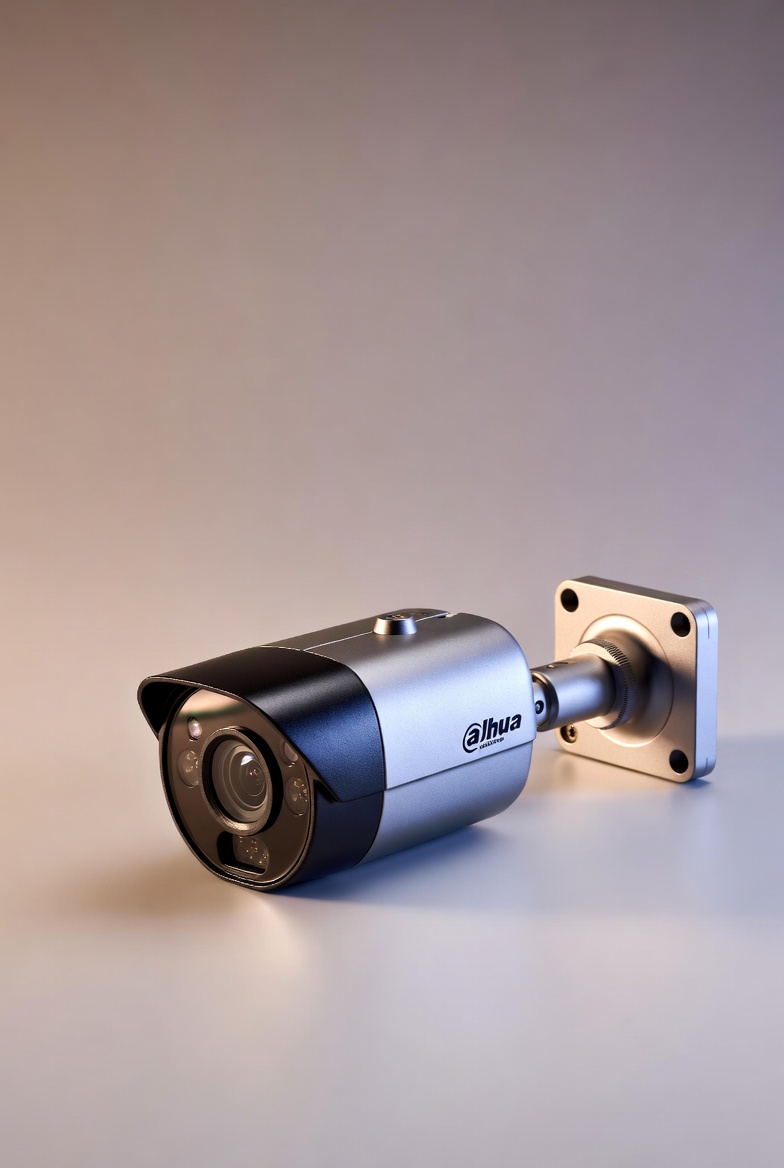

Dahua HAC-B1A21P 2MP Bullet Outdoor CCTV Camera
- 2-megapixel (1920×1080) resolution
- 1/2.7″ CMOS sensor
- 3.6mm fixed lens
- 30 meters IR range
- IP67 weatherproofing
- H.264 and H.265 video compression
- 12V DC power supply
- MicroSD card slot for local storage (up to 128GB)
- Supports ONVIF, CGI, and SDK protocols
Related products
-
MAIN FEATURES:
- Resolution: 2MP (1920×1080)
- Audio: Indicates it has a built-in microphone for audio recording
- Color: Color camera with true day/night functionality
- Sensor: 1/2.8″ CMOS sensor
- Lens: 2.8mm fixed lens
- Field of View: 105° horizontal
- Night Vision: LED illumination range up to 30m (98ft)
- Weatherproofing: IP67 rating
- Vandal Resistance: IK10 rating
- Operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Power Supply: 12V DC
- Video Compression: H.264 and H.265
- Storage: Micro SD card slot (up to 128GB)
- Detection: Motion detection and tampering detection
- LED: White light LED for illumination
- PoE: Power over Ethernet support
2MP HD dome camera with color imaging and built-in audio support. Features advanced LED for clear, full-color video in low-light conditions. Compact, weather-resistant design suitable for indoor and outdoor surveillance. Reliable Dahua performance with easy installation and enhanced security monitoring.
-
Device Type analog camera Connection type wired Installation location outside Matrix resolution 2 Mpx Wi-Fi support no Video standard HDCVI, HDTVI, AHD, CVBS (Analogue) Type of instalation wall, ceiling, overhead Form factor bullet Intended for use home, house, office, store, warehouse, production, garage Matrix type 1/2.7″ progressive CMOS Recording speed 1080p (1-25 fps), 720 р (1-25/50 fps) Camera motion sensor program Lens type fixed Focal length 2.8 mm Viewing angle 119° Optical zoom 1x Digital zoom 1x Light sensitivity 0.02 Lx / F1.9, 0 Lx with IR Light distance 30 m Type of illumination infrared Day-night mode yes, ICR filter Memory card slot no Built-in microphone yes Built-in speaker no Video output 1xBNC Audio inputs no Audio outputs no Network output no Network Interface no Type of memory cards no PoE support no PoE type no Alarm Inputs-Outputs no Alarm inputs no Alarm outputs no Modes day/night (ICR) / AGC / 2D DNR / BLC / HLC / DWDR Streaming 1 stream Built-in lightning protection no Moisture and dust protection IP67 Vandal protection no Browsers Chrome, Firefox, Safari, Edge, Opera OS support Windows, MAC OS, IOS, Android Powered by batteries / rechargeable batteries no Integration with Ajax system no Mobile app немає даних Compatibility with Dahua DVRs Consumption 3 W Operating voltage 12V DC Dimensions (WхHхD) 167х70×70 mm Body color white Body material plastic Weight 190 g Temperature range -40…+60°C Producing country China Device class economy
-
MAIN FEATURES:
- Camera: 5MP
- Image Sensor: 1/2.7″ CMOS
- Effective Pixels: 2592(H)×1944(V), 5MP
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
- Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on
- S/N Ratio: More than 65dB
- IR Distance: Up to 80m (262feet)
- IR On/Off Control: Auto / Manual
- IR LEDs: 2
- Lens: Fixed lens / Fixed iris
- Mount Type: Board-in
- Focal Length: 3.6mm (2.8mm, 6mm, 8mm optional)
- Max Aperture: F1.85
- Angle of View: H: 77.5° (98°/49°/37°)
- Close Focus Distance: 1400mm (900mm/2800mm/4500mm)
- DORI Distance: Detect: 2.8mm: 63m(207ft), 3.6mm: 80m(262ft), 6mm: 120m(394ft), 8mm: 160m(525ft) and Observe: 2.8mm: 25m(82ft), 3.6mm: 32m(105ft), 6mm: 48m(157ft), 8mm: 64m(210ft)
-
SHORT DESCRIPTION:
SD49225XA-HNR-S2
2MP 25x Starlight IR WizSense Network PTZ Camera
> 1/2.8″ 2Megapixel CMOS
> Powerful 25x optical zoom
> Starlight technology
> Perimeter protection
> PoE+
> IP66
> IR distance up to 100m
> SMD PLUS
DETAIL DESCRIPTION:
Camera Features
1. Image Sensor: 1/2.8″ CMOS
2. Pixel: 2 MP
3. Max Resolution: 1920×1080
4. Electronic Shutter Speed: 1/1s-1/30000s
5. Scanning System: Progressive
6. Min Illumination: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)
7. Illumination Distance: 100m (328.08ft)
8. Zoom: 25x optical zoom
9. Focus Control: Auto, Semi-Auto, Manual
10. Close Focus Distance: 0.1m-1.5m (0.33ft-4.92ft)PTZ Features
1. Pan/Tilt Range: Pan: 0°-360°, Tilt: -15°-90°
2. Manual Control Speed: Pan: 0.1°-200°/s, Tilt: 0.1°-120°/s
3. Preset Speed: Pan: 240°/s, Tilt: 200°/s
4. Preset: 300
5. Tour: 8 (up to 32 presets per tour)
6. Pattern: 5
7. Scan: 5Video Features
1. Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
2. Streaming Capability: 3 streams
3. Resolution: 1080p, 1.3M, 720p, D1, CIF
4. Frame Rate: Main stream: 1-50/60fps, Sub stream: 1-25/30fps
5. Bit Rate Control: CBR, VBRAudio Features
1. Audio Compression: G.711a, G.711Mu, G.726, AAC, MPEG2-Layer2, G722.1
2. Audio Input: 1
3. Audio Output: 1Network Features
1. Ethernet: RJ-45 (10/100 Base-T)
2. Protocol: HTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, Qos, FTP, UPnP, ICMP, SNMP, SNMP v1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, RTMP, TCPManagement Features
1. User/Host: 20 (total bandwidth: 64MB)
2. Storage: Imou Cloud, FTP, Micro SD card (max. 512GB), NAS
3. Browser: IE7 and later versions, Chrome, Firefox, Safari
4. Management Software: Smart PSS, DSS, IVSS, Configtool, NVR, Smart Player, Imou Mobile PhoneCertifications
1. CE: EN55032/EN55024/EN50130-4
2. FCC: Part15 subpartB, ANSI C63.4-2014
3. UL: UL60950-1+CAN/CSA C22.2, No. 60950-1Environmental Features
1. Operating Temperature: -40°C to +70°C (-40°F to +158°F)
2. Operating Humidity: ≤ 95%
3. Protection: IP66, TVS 6000V lightning proof, surge protection, voltage transient protectionPhysical Features
1. Casing: Aluminum alloy ADC12
2. Dimensions: 269.9mm x Φ160mm (11.61″ x Φ6.30″)
3. Net Weight: 3kg (6.61lb)
4. Gross Weight: 4.2kg (9.26lb)
