XVR / DVR / NVR

Short Description

The Dahua DHI‑NVR5216‑EI is a professional 16‑channel network video recorder featuring high‑resolution camera support (up to 12 MP), advanced AI analytics (face detection/recognition, perimeter protection, SMD Plus), dual HDD bays, Smart H.265+ compression, and flexible display options — ideal for robust surveillance systems in homes, offices, and commercial settings.

Short Description

The Dahua DHI‑NVR4116‑EI is a powerful 16‑channel Network Video Recorder featuring high‑resolution support (up to 12 MP), advanced AI analytics (SMD Plus, perimeter protection), efficient video compression, dual HDD bays, and flexible connectivity — ideal for large home, office, or business surveillance systems.

Short Description

The Dahua DHI‑NVR2116HS‑4KS3 is a 16‑channel IP network video recorder designed for reliable surveillance with support for up to 12 MP cameras, Smart H.265+ video compression, AI‑enabled SMD motion detection, perimeter protection, and simultaneous 4K HDMI output — ideal for homes, offices, and small‑to‑medium business CCTV systems.

Short Description

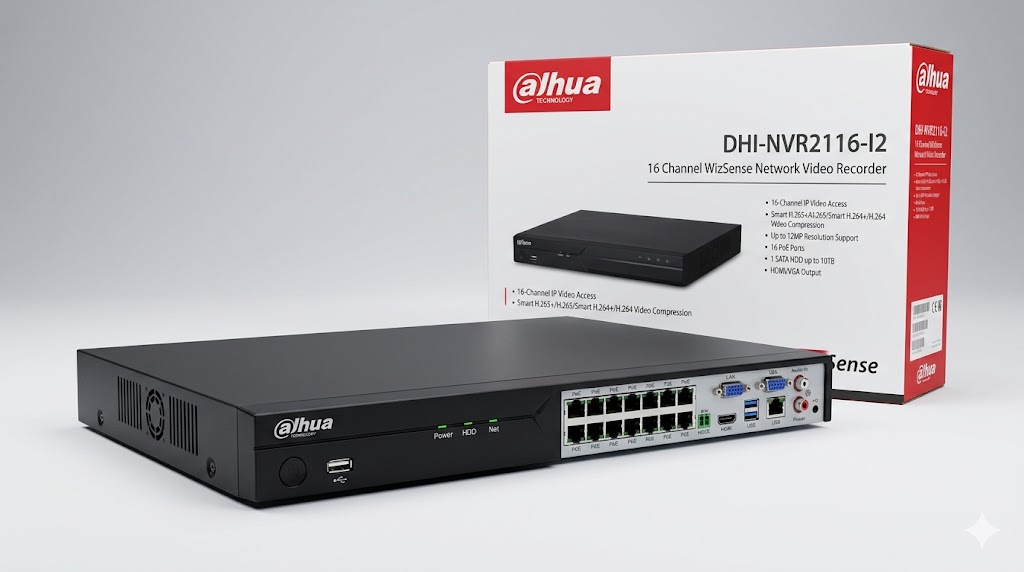

The Dahua DHI‑NVR2116‑I2 is a powerful 16‑channel network video recorder featuring support for up to 12 MP camera resolution, AI smart analytics (face detection/recognition, perimeter protection, SMD Plus), efficient video compression, and flexible recording options — ideal for homes, offices, and small‑to‑medium business surveillance systems.

Short Description

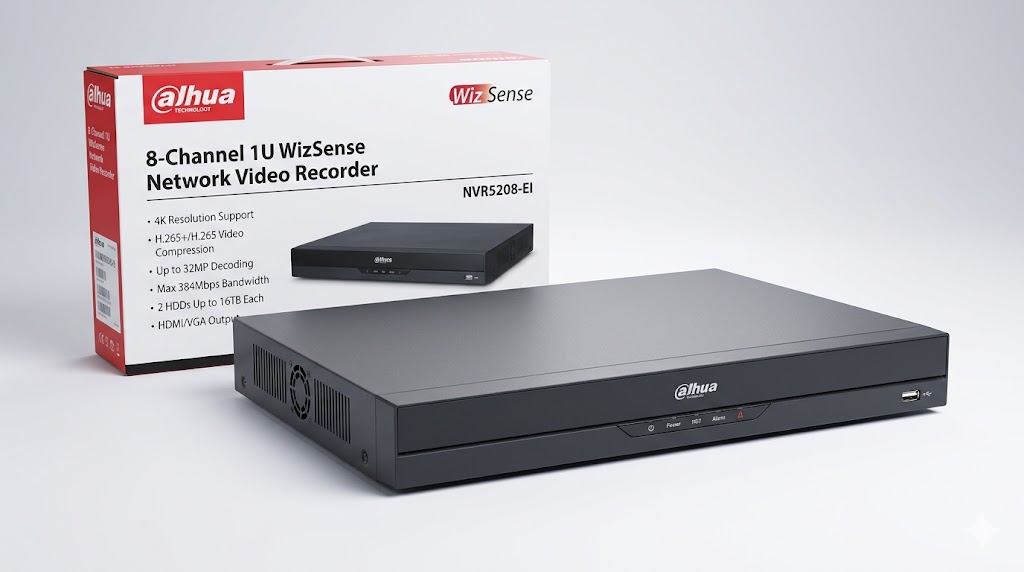

The Dahua DH‑NVR5208‑EI is an 8‑channel network video recorder featuring high‑resolution support (up to 32 MP), advanced AI analytics (face detection/recognition, perimeter protection, SMD Plus), dual HDD bays (up to 20 TB each), and efficient video compression — ideal for reliable IP CCTV systems in homes, offices, and businesses.

Short Description

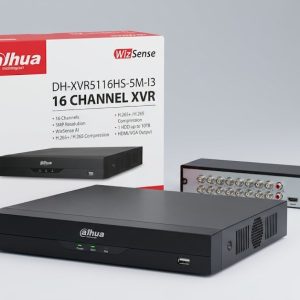

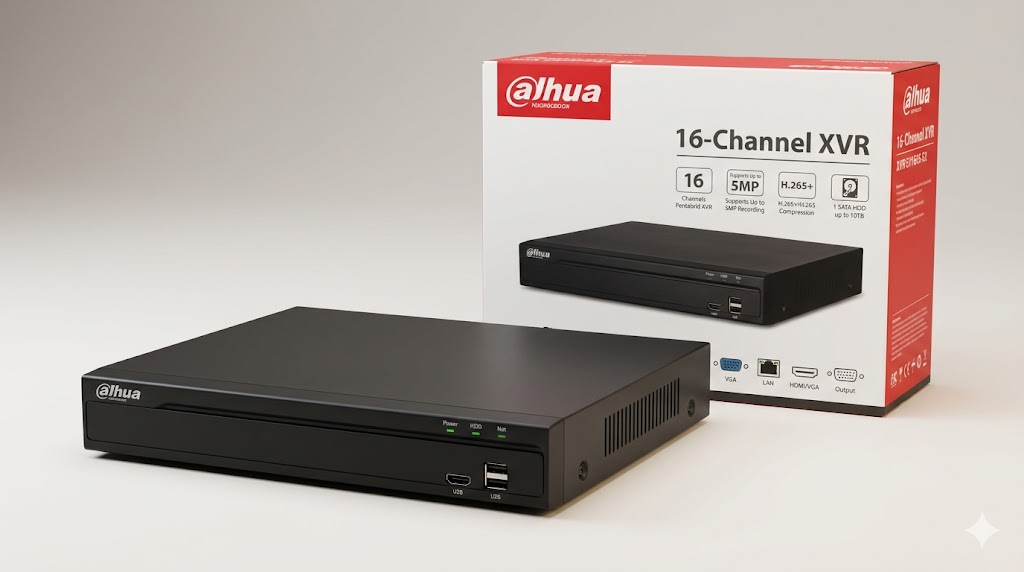

The Dahua DH‑XVR5116HS‑5M‑I3 is a 16‑channel hybrid video recorder (XVR) with support for up to 5 MP resolution, multi‑format camera compatibility, smart search playback, and efficient video compression — ideal for mid‑sized CCTV systems needing flexible inputs and reliable recording.

Short Description

The Dahua DH‑XVR1B04‑I/T is a 4‑channel hybrid XVR (multi‑format recorder) with support for two‑way talk on all channels, AI‑enhanced video compression, smart human/vehicle detection, and up to 5 IP camera inputs — ideal for small CCTV systems requiring flexible connectivity and smart alerts.

The Dahua DHI‑NVR616‑64/128‑4KS2 Network Video Recorder is a professional Ultra Series IP recorder supporting up to 64/128 camera channels, 4K resolution output, extensive RAID storage, and advanced AI‑capable video analytics. With robust Intel processing, remote management, and multi‑screen display, this NVR delivers scalable, high‑performance surveillance recording for enterprise, industrial, and mission‑critical environments.

The Dahua XVR1B04H-I 4-Channel XVR supports high-resolution cameras up to 5MP, delivering superior video clarity for small to medium surveillance systems. With Penta-brid compatibility, H.265+ compression, and smart motion detection, it ensures efficient storage, reliable performance, and seamless remote monitoring for residential and commercial security setups.

The Dahua XVR1B16-I 16-Channel XVR is a reliable Penta-brid digital video recorder designed for medium to large surveillance installations. Supporting up to 2MP cameras with 1080N/720P recording, it delivers efficient H.265+ compression, stable multi-format compatibility, and seamless remote monitoring for commercial and industrial security applications.

General
• Model: DHI-XVR5104HS-I3
• Channels: 4 analog inputs (HDCVI/AHD/TVI/CVBS)
• Max Analog Camera Resolution: Up to 5 MP
• IP Camera Support: Up to 6 channels, each up to 6 MP

AI Smart Features
• Face Recognition: 1 channel (face comparison & database support)
• Face Detection: Detects face attributes like age, gender, glasses, etc.
• SMD Plus: Smart motion filtering (human/vehicle) on 4 channels
• Perimeter Protection: Tripwire & intrusion alarms on analog channels
• QuickPick 2.0: Target retrieval for faster search

Video & Recording
• Video Compression: Smart H.265+/H.265 dual-stream
• Supported Resolutions (Analog): 5 MP / 4 MP / 1080P / 720P / D1 / CIF
• Recording Playback: Multi-screen display (1/4)

Display & Interfaces
• Video Outputs: 1 × HDMI + 1 × VGA
• USB: 2 × USB ports
• Audio: 1 In / 1 Out (RCA)
• Network: 1 × RJ-45 (Ethernet)

Storage
• 1 × SATA for HDD (supports large HDD for recordings)

Network & Remote
• Supports ONVIF & third-party cameras
• Remote viewing via Web, CMS & DMSS mobile app

Physical & Power
• Power: DC 12 V / ~2 A
• Operating Temp.: -10 °C to +55 °C
• Compact 1U metal chassis

General
• Model: DHI-XVR5108HS-I3
• Channels: 8 analog BNC inputs (HDCVI/AHD/TVI/CVBS)
• Recorder Type: Penta-brid (analog + IP)
• OS: Embedded Linux
• Max IP Support: Up to 12 IP channels (4 native + 8 converted)

Video & Recording
• Max Analog Camera Input: 8 MP (for CVI/AHD/TVI) & lower resolutions
• Max IP Camera Resolution: Up to 8 MP
• Recording Resolutions: 5M-N / 4M-N / 1080P / 720P / D1 / CIF
• Video Compression: AI Coding / H.265+ / H.265 / H.264+ / H.264

AI & Smart Functions
• SMD Plus (smart motion detection filtering)
• Face Detection support ��channel limits depend on mode

Display & Output
• HDMI: Supports up to 4K (3840×2160) output
• VGA: Up to 1080P output
• Multi-screen: 1/4/8/9 (IP off) or 1/4/8/9/16 (with IP extension)

Audio & Interfaces
• Audio: 1 × RCA In / 1 × RCA Out
• USB: 2 × USB (front + rear)
• Network: 1 × RJ-45 Gigabit

Storage
• HDD: 1 × SATA (up to ~16 TB)

Network & Compatibility
• Supports ONVIF & third-party cameras
• Remote access via Web, CMS & DMSS mobile app

Physical & Power
• Power Input: DC 12 V
• Operating Temp: -10 °C to +55 °C
• Compact 1U metal chassis

General

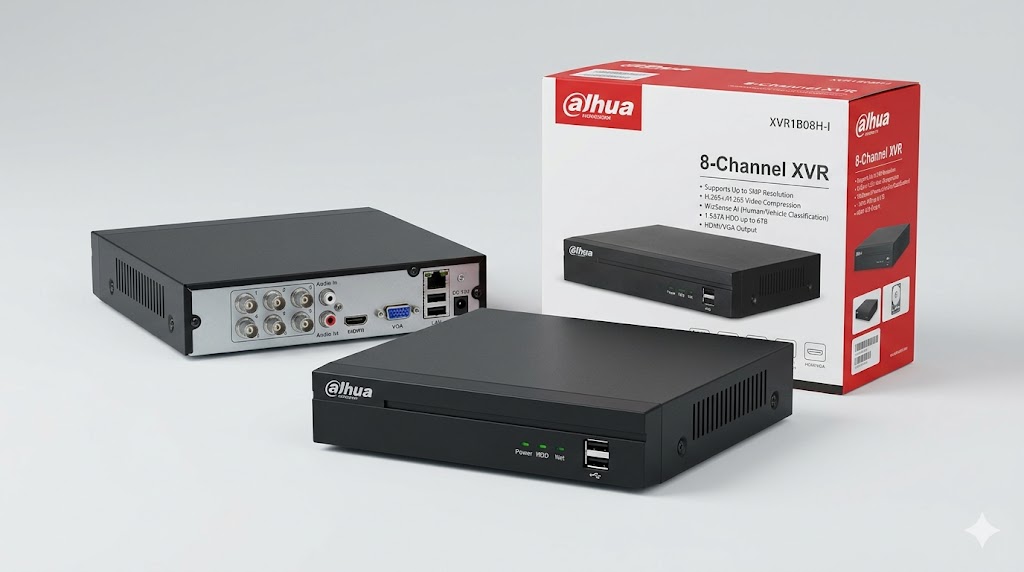

• Model: XVR1B08H-I
• Channels: 8 BNC analog inputs
• Supported Resolution (Analog): Up to 5 MP
• Supported IP Cameras: Up to 12 channels (4 native + 8 converted)
• Max IP Resolution: Up to 6 MP
• Recorder Type: Penta-brid (HDCVI/AHD/TVI/CVBS/IP)
• OS: Embedded Linux
• Series: WizSense (AI Coding & SMD Plus)

Video & Recording
• AI Coding + Smart H.265+/H.265/H.264+ compression
• Recording Resolutions: 5M-N, 4M-N, 1080p, 1080N, 720p, 960H, D1, CIF
• Motion Detection & Tampering Alarm

Display & Interfaces
• Video Output: 1 × HDMI + 1 × VGA (up to 1080p)
• USB: 2 × USB 2.0
• Audio: 1 × RCA In / 1 × RCA Out
• Network: 1 × RJ-45 (100 Mbps)

Smart / AI Features
• SMD Plus (human/vehicle motion filter) for analog channels
• AI Coding reduces storage & bandwidth while keeping detail

Storage
• HDD: 1 × SATA (supports large HDD, typically up to ~10–16 TB)
• Backup: USB / Network

Network & Compatibility
• Supports ONVIF & many third-party cameras
• Remote viewing via Web, CMS & mobile apps (DMSS)

Physical & Power
• Power: DC 12 V / ~1.5 A
• Operating Temp: -10 °C to +45 °C
• Dimensions: ~198 × 203 × 41 mm
• Weight: ~0.54 kg

General

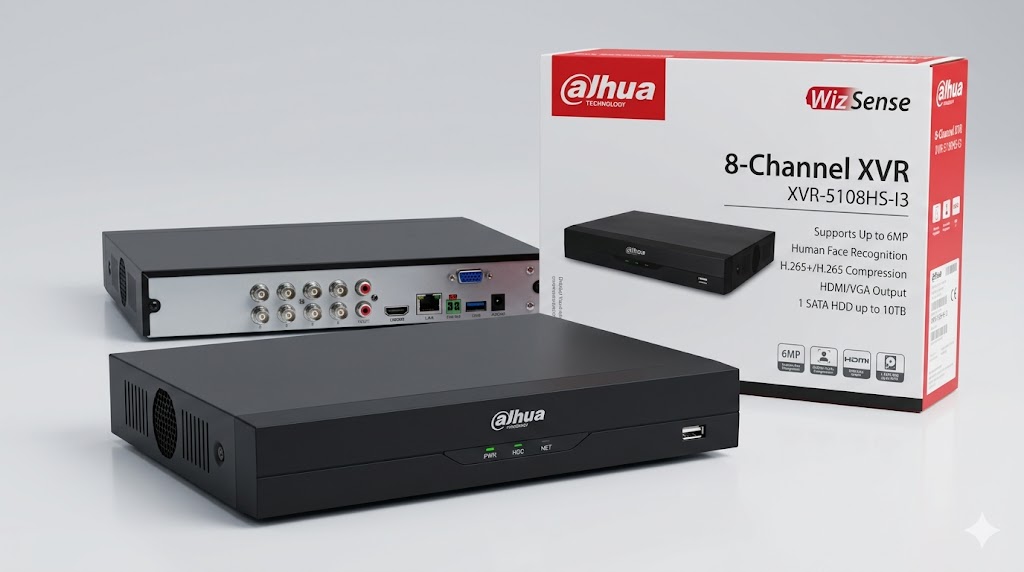

• Model: XVR-5108HS-I3 (WizSense AI XVR)
• Channels: 8 BNC (analog) + up to 12 IP support
• Max Camera Resolution: Up to 6 MP (IP)
• Video Input Bandwidth: 64 Mbps
• Compression: AI Coding / Smart H.265+/H.265/Smart H.264+/H.264

AI Smart Functions
• Human Face Recognition: supported on 1–2 channels (analog)
• Face Detection: detects attributes like age, gender, mask, etc.
• SMD Plus: human & vehicle motion filtering (up to 8 channels)
• Perimeter Protection: (motion line/intrusion) supported on analog channels
• Face Database: Supports up to ~10,000 faces

Video & Recording
• Supports: HDCVI, TVI, AHD, CVBS & IP cameras
• Recording Resolutions: up to 6 MP (IP), 5MP/4MP/1080P/720P
• Playback Modes: general, motion, event, smart (face/motion)

Display & Interfaces
• HDMI: 1 output (up to Full HD)
• VGA: 1 output
• USB: 2 × USB2.0
• Audio: 1 In / 1 Out (RCA)
• Network: 1 × RJ-45

Storage
• HDD: 1 × SATA (up to ~10–16 TB)
• Backup: USB export & network export

Network & Remote Access
• Supports ONVIF & third-party cameras
• Remote monitoring via Web, CMS & app (DMSS)

Power & Physical
• Power: DC 12 V / 2 A
• Operating Temp: -10 °C to +55 °C
• Compact metal body (1U)

General
• Model: DHI‑NVR1104HS‑S3/H
• Channels: 4 IP camera inputs
• Max Supported Resolution: Up to 8 MP per camera
• OS: Embedded Linux
• Total Bandwidth: 80 Mbps

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264
• Recording Resolutions: 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF
• Decoding Capability:
   • 1 × 8MP @30 fps
   • 2 × 4MP @30 fps
   • 4 × 1080 P @30 fps

Display & Interfaces
• HDMI: 1 output (max 1080P)
• VGA: 1 output (1080P)
• USB: 2 × USB2.0
• Audio: 1 × In / 1 × Out (RCA)
• Network: 1 × RJ‑45 (10/100 Mbps)

Storage
• HDD Bays: 1 × SATA
• Max HDD Capacity: Up to 8 TB

Network & Compatibility
• Supports ONVIF / RTSP cameras
• Remote access via iDMSS (iOS), gDMSS (Android)
• Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, DHCP, DNS, P2P

Playback & Display
• Multi‑screen Display: 1 / 4 views
• Playback: Up to 4 channels simultaneously

Power & Physical
• Power: DC 12 V / 1.5 A
• Size: ~260 × 225 × 47.6 mm
• Operating Temp.: ‑10 °C to +45 °C
• Weight: ~0.8 kg

General
• Model: DHI‑NVR1108HS‑S3/H
• Channels: 8 IP camera inputs
• Max Supported Resolution: Up to 8 MP per camera
• System: Embedded Linux with 4.0 user interface
• Total Bandwidth: 80 Mbps

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Supported Resolutions: 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF
• Decoding: Adaptive (e.g., 1ch @ 8MP; 4ch @ 1080P; 8ch @ 720P)
• Recording Modes: Manual, Motion, Alarm, Schedule
• Multi‑screen Display: 1/4/8/9 split views

Display & Interfaces
• HDMI: 1 output (max 1080P)
• VGA: 1 output (1080P)
• USB: 2 × USB 2.0
• Audio: 1 × RCA In / 1 × RCA Out
• Network: 1 × RJ‑45 10/100 Mbps

Storage
• HDD Bays: 1 × SATA
• Max HDD Capacity: Up to ~8 TB (varies by environment)

Network & Compatibility
• Supports ONVIF & RTSP third‑party camera protocols
• Remote viewing via iDMSS / gDMSS mobile apps
• Network Protocols: HTTP, RTSP, TCP/IP, DHCP, DNS, P2P, NTP

Playback & Backup
• Simultaneous playback: Up to 8 channels
• Backup: USB export & network backup

Power & Physical
• Power Supply: 12 V DC / 1.5 A
• Operating Temp.: ‑10 °C to +45 °C
• Dimensions: ~260 × 225 × 48 mm
• Weight: ~0.8–1.2 kg (without HDD)

General
• Model: DHI‑NVR2108‑S3
• Channels: 8 IP camera inputs
• Max Supported Resolution: Up to 12 MP per camera
• Operating System: Embedded Linux
• Decoder: Supports adaptive decoding (e.g., 1ch @12MP, 6ch @1080P)

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264
• Recording Resolutions: 12MP, 8MP, 5MP, 4MP, 3MP, 2MP, 720p, D1
• Multi‑screen Views: 1/4/8/9
• Recording Modes: Manual, Schedule, Motion & Alarm

Display & Interfaces
• Video Outputs: 1 × HDMI + 1 × VGA (simultaneous)
• USB: 2 × USB 2.0
• Audio I/O: 1 × Input, 1 × Output
• Network: 1 × RJ‑45 10/100 Mbps

Storage
• HDD Bays: 1 × SATA (up to 16 TB)

Network & Compatibility
• Supports ONVIF / third‑party cameras
• Remote access via Web, CMS & Mobile (Android/iOS)

Physical & Power
• Power: 12 V DC, ~1.5 A
• Operating Temp.: ‑10 °C to +55 °C
• Dimensions: ~205 × 206 × 46 mm

General
• Model: DHI‑NVR4104‑4KS2/L
• Channels: 4 IP camera inputs
• Max Supported Camera Resolution: Up to 8 MP (records 4 MP and below smoothly)
• OS: Embedded Linux
• Total Bandwidth: 80 Mbps

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Supported Resolutions: 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1
• Decoding: Up to 8 × 1080P @ 30 fps
• Recording Modes: Manual, Schedule, Motion, Alarm

Display & Interfaces
• HDMI: 1 (up to 4K output)
• VGA: 1
• USB: 2 × USB2.0
• Audio: 1 × RCA In + 1 × RCA Out
• Network: 1 × RJ‑45 (10/100 Mbps)

Storage
• HDD Bays: 1 × SATA (with 1 HDD installed)
• Max HDD Capacity: Up to ~10 TB

Network & Compatibility
• Supports ONVIF & RTSP cameras
• Remote Access: Web, CMS & Mobile App (Android/iOS)

Playback & Display
• Multi‑screen Display: 1 / 4 views
• Playback: Up to 4 channels

Power & Physical
• Power: DC 12 V / 2 A
• Operating Temp: ‑10 °C to +50 °C
• Size: Approx 204 × 206 × 48 mm
• Weight: ~0.45 kg

General
• Model: DHI‑NVR4116HS‑4KS2/L
• Channels: 16 IP camera inputs
• Max Supported Resolution: Up to 8 MP for preview & playback
• OS: Embedded Linux
• Processor: Industrial‑grade embedded processor

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Supported Resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 720P / D1
• Decoding Capability: 8 × 1080P @ 30 fps
• Recording Playback: Up to 16 channels

Display & Interfaces
• Video Output: 1 × HDMI + 1 × VGA (simultaneous)
• Max Display Resolution: Up to 4K (3840×2160)
• USB Ports: 2 × USB2.0
• Network: 1 × RJ‑45 (10/100 Mbps)

Storage
• HDD Bays: 1 × SATA
• Max HDD Capacity: Up to ~10 TB

Network & Compatibility
• Supports ONVIF & RTSP cameras
• Remote access: Web, CMS, DMSS mobile app

Physical & Power
• Body: Metal chassis (compact 1U)
• Power Supply: DC 12 V
• Operating Temp: ‑10 °C to +55 °C

General

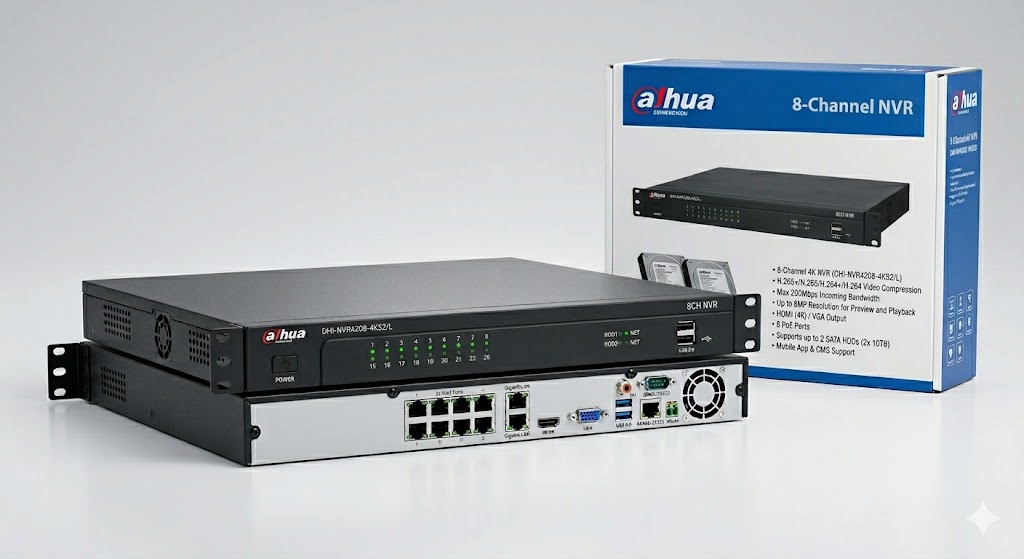

• Model: DHI‑NVR4208‑4KS2/L
• Channels: 8 IP camera inputs
• Max Supported Resolution: Up to 8 MP per camera
• Operating System: Embedded Linux
• Processor: Industrial‑grade embedded processor

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Recording Resolution: 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1
• Decoding: 8 × 1080P @ 30 fps
• Multi‑screen View: 1/4/8/9

Display & Interfaces
• HDMI: 1 × (up to 4K output)
• VGA: 1 ×
• USB: 2 × USB2.0 (front + rear)
• Audio: 1 × RCA IN / 1 × RCA OUT
• RJ‑45 Network: 1 × Gigabit

Storage & Alarm
• HDD Bays: 2 × SATA III (supports up to 10 TB per disk)
• Alarm Inputs/Outputs: 4 / 2

Network & Compatibility
• Supports ONVIF & RTSP protocol cameras
• Remote access via Web, CMS & Mobile (DMSS) app

Physical & Power
• Power: DC 12 V / 4 A
• Operating Temp.: ‑10 °C to +55 °C
• Dimensions: ~375 × 282 × 53 mm
• Weight (no HDD): ~1.5 kg

General
• Model: DHI‑NVR4432‑4KS2
• Channels: 32 IP camera inputs
• Max Supported Resolution: Up to 16 MP / 12 MP / 8 MP
• Operating System: Embedded Linux
• Processor: Quad‑core embedded processor
• Total Network Bandwidth: Up to 256 Mbps

Video & Recording
• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Recording Resolutions: 16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1
• Recording Modes: Manual, Schedule, Motion/Alarm/Intelligent

Display & Interfaces
• Video Output: 1 × HDMI + 1 × VGA
• Display Resolution: Up to 4K (3840×2160)
• Multi‑screen Display: 1/4/8/9/16/25/36
• Two‑way Audio: RCA In/Out (1 input, 1 output)

Storage & Ports
• HDD Bays: 4 × SATA (up to ~10 TB per HDD)
• USB: 1 × USB2.0 + 1 × USB3.0
• Network: 2 × RJ‑45 Gigabit ports
• Alarm I/O: 16 inputs / 4 outputs
• RS‑232 / RS‑485 support

Network & Compatibility
• Supports ONVIF & third‑party cameras
• Remote access via Web, CMS & Mobile (Android/iOS)

Physical & Power
• Power: AC 100–240 V
• Operating Temp.: ‑10 °C to +55 °C
• Size: Approx 440 × 415 × 76 mm
• Weight: ~4.25 kg (without HDD)

General

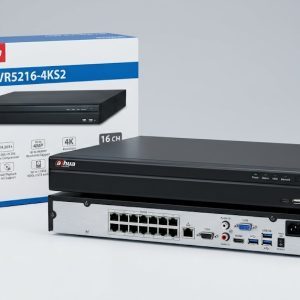

• Model: DHI‑NVR5216‑4KS2
• Channels: 16 IP camera inputs
• Max Resolution Supported (Preview & Playback): Up to 24 MP / 12 MP
• Max Incoming Bandwidth: 320 Mbps
• Processor: Quad‑core embedded
• OS: Embedded Linux

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Recording Resolutions: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1
• Decoding: 4‑ch @ 8MP (30 fps), 16‑ch @ 1080P (30 fps)
• Recording Modes: Manual, Schedule, Motion, Alarm, IVS

Display & Interfaces
• HDMI: 1 (up to 3840×2160)
• VGA: 1
• Network: 1 × RJ‑45 10/100/1000 Mbps
• USB: 2 (1 × USB2.0 + 1 × USB3.0)
• Audio: 1 × Input, 1 × Output (RCA)

Alarm & Playback
• Alarm Inputs/Outputs: 4 / 2
• Multi‑screen: 1/4/8/9/16
• Playback: Sync up to 16 channels

Storage
• HDD Bays: 2 × SATA
• Max HDD Size: Up to ~8–10 TB per drive

Network & Compatibility
• Supports ONVIF & multi‑brand cameras
• Remote access via Web, CMS & Mobile (DMSS)

Power & Environment
• Power: DC 12 V / 4 A
• Operating Temp: ‑10 °C to +55 °C
• Size: ~375 × 282 × 56 mm
• Weight: ~1.6 kg

General
• Model: DHI‑NVR5464‑4KS2
• Channels: 64 IP camera inputs
• Max Resolution Supported: Up to 12 MP
• Operating System: Embedded Linux
• Processor: Quad‑core embedded processor

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Max Incoming Bandwidth: 320 Mbps
• Recording Resolutions: 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 720P / D1
• Recording Modes: Manual, Schedule, Motion, Alarm, IVS

Display & Playback
• Video Output: 2 × HDMI + 2 × VGA
• Display Resolutions: Up to 3840×2160 (4K)
• Multi‑screen Display: Up to 64‑channel view

Audio & Alarm
• Two‑way Talk: 1 Input / 2 Output (RCA)
• Alarm Inputs/Outputs: 16 / 6 (varies by region)

Storage & Interfaces
• HDD Bays: 4 × SATA (up to ~10 TB per drive typical)
• eSATA: 1 port
• USB: USB2.0 + USB3.0
• Network: 2 × Gigabit RJ45
• PTZ Control: RS‑485

Network & Compatibility
• Supports ONVIF / Multi‑brand cameras
• Remote Access: Web / CMS / Mobile (DMSS)

Physical & Power
• Form Factor: 1.5U rack
• Power: AC 100–240 V
• Operating Temp: ‑10 °C to +55 °C
• Size & Weight: ~440 × 411 × 76 mm, ~4.3 kg

General
• Model: DHI‑NVR5432‑4KS2
• Channels: 32 IP camera inputs
• Max Resolution Supported: Up to 12 MP
• Operating System: Embedded Linux
• Processor: Quad‑core

Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Max Incoming Bandwidth: 320 Mbps
• Recording Resolution: Up to 12 MP
• Multi‑channel Playback: 1/4/8/9/16/25/36 etc.

Display & Ports
• Video Output: 2 × HDMI + 2 × VGA
• Network: 2 × RJ‑45 (10/100/1000 Mbps)
• USB: 3 ports (1× USB2.0 + 2× USB3.0)
• Audio: 1 In / 2 Out (RCA)
• Alarm: 16 inputs, 6 outputs
• eSATA: 1 port
• RS‑232 / RS‑485 support

Storage
• HDD Bays: 4 × SATA III
• Max HDD Capacity: Up to 10 TB per drive

Network & Compatibility
• Remote Access: Web, CMS, DMSS mobile app
• ONVIF & third‑party support

Physical & Power
• Form Factor: 1.5U rack mount
• Power: AC 100‑240V
